VAG Genuine Diagnostics Interface VAS6154A ASE40543101001

https://www.ownsilent.in/web/image/product.template/4049/image_1920?unique=63c29ef

The diagnosis interface VAS 6154A with wireless networking technology supersedes diagnosis interface VAS 6154. It can be used with ODIS Service (Offboard Diagnostic Information System – Service), version 5.0.0 or higher, and with ODIS Engineering (Offboard Diagnostic Information System – Engineering), version 9.0 or higher.

It enables wireless data transmission from the interface in the vehicle to the diagnosis unit. On modern vehicles, diagnostic functions can only be carried out at full CAN-FD speed with this diagnostic interface.

If a wireless connection is not possible/permissible, the USB module is used, which guarantees a reliable wired data transmission to the diagnosis unit.

Infrastructure mode

In infrastructure mode, several network-capable devices can be connected together (network subscribers).

For a wireless network, a wireless access point is required. This access point forms the connection to wireless-enabled subscribers.

Point-to-point connection

With a point-to-point connection via a wireless network, VAS 6154A creates a radio network. VAS 6154A thereby adopts the role of a radio access point (Access Point). A direct connection is made between the diagnosis unit and the diagnosis interface VAS 6154A.

VAS 6154A is configured using a web-based user interface.

Design and Features:

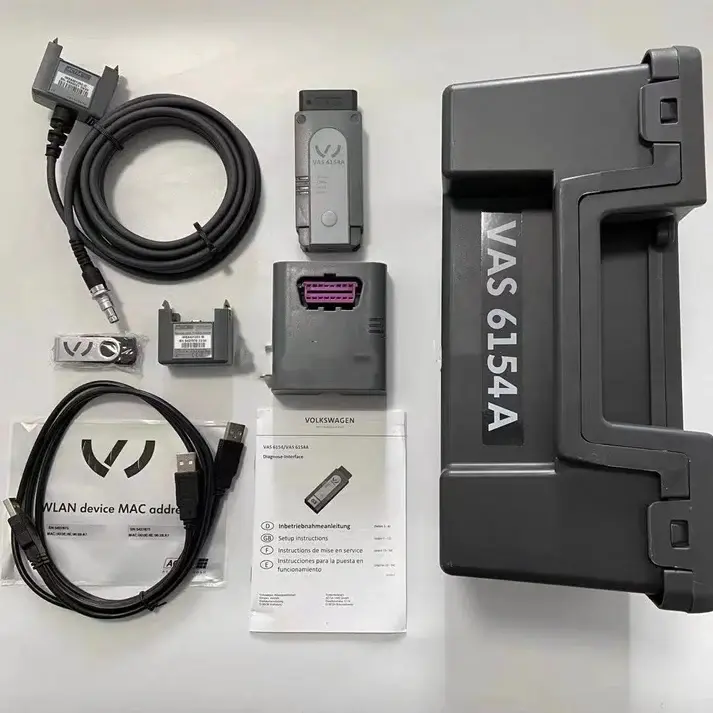

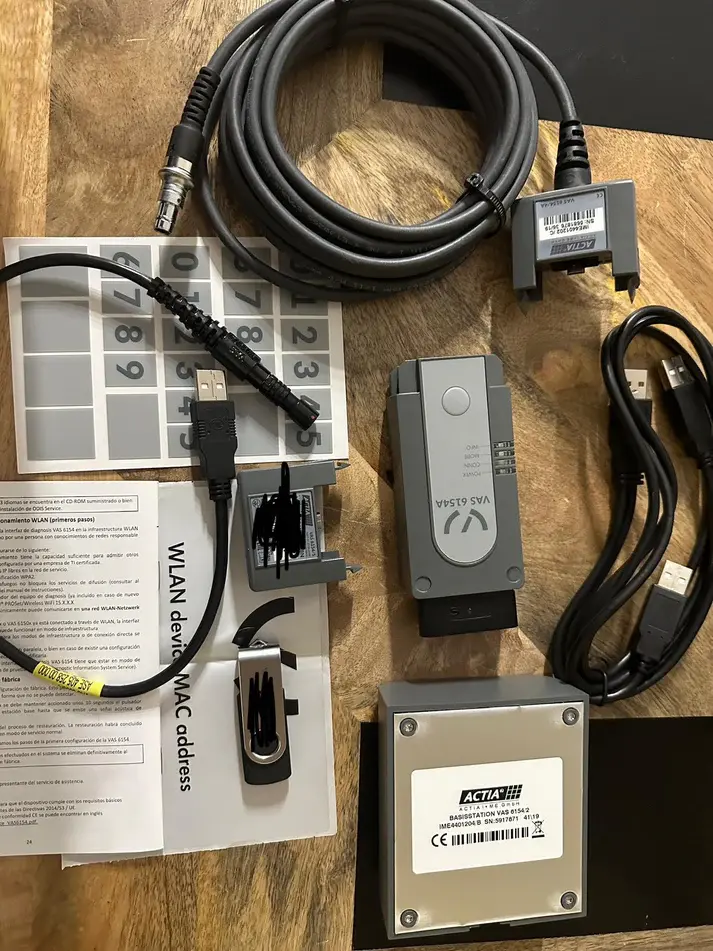

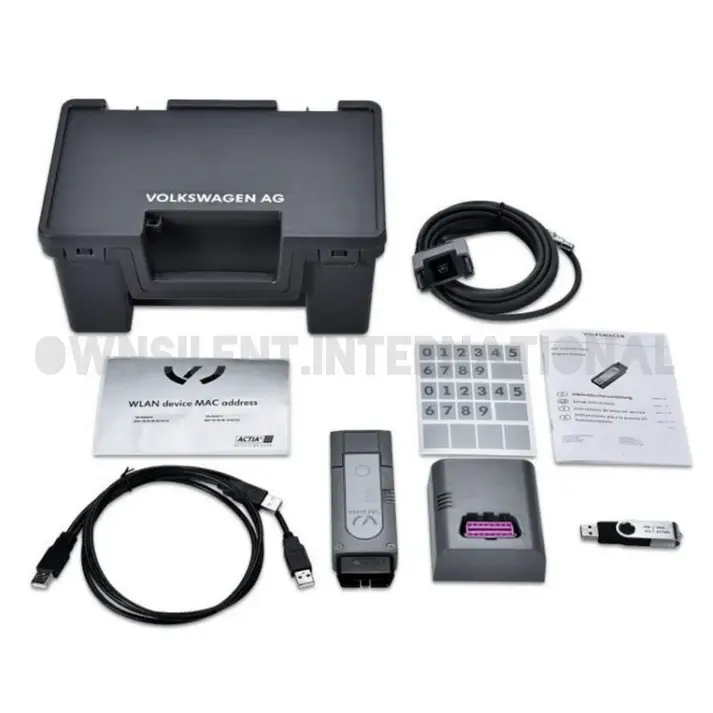

With wireless network module and USB module

Permission to use the radio network has been granted for the following countries:

A, AUS, B, BIH, BR, CDN, CH, CY, CZ, D, DK, DZ, E, EST, F, FIN, GB, GR, H, HK, I, IL, IND, IRL, IS, J, L, LT, LV, M, MA, MEX, N, NL, NZ, P, PL, RA, RC, ROK, RUS, S, SGP, SK, TR, TN, UA, UAE, USA, ZA

Technical Specifications:

  • Dimensions: approx. 136x48x25mm
  • Weight: approx. 150g
  • Power supply: 8-18V via vehicle connector
  • Output: approx. 5W
  • Temperature range: storage -20°C to +85°C, operation -20°C to +40°C
  • PC interface (wired): USB 2.0 high speed, 480 Mbps or fast Ethernet, 100 Mbps (via LAN module)
  • PC interfaces (wireless): wireless standard 802.11 ab/b/g/n 2T2R 300 Mbps client mode (WPA2 EAP-TLS, WPA2 PSK)
  • AP mode (WPA2 PSK)

This offer contains just diagnostic heads.

The offer doesn´t include any SW VAS-PC nor ODIS!

$ 2,499.00 2499.0 USD $ 2,499.00

$ 2,499.00
